3 axles 40 feet Skeleton Semi Trailers with JOST 3.5 inch king pin

3 axles 40 feet Skeleton Semi Trailers with JOST 3.5 inch king pin

As the professional manufacturer 3 axles 40 feet Skeleton Semi Trailers with JOST 3.5 inch king pin, we would like to provide you 3 AXLES 40 FEET SKELETON SEMI TRAILERS. And we will offer you the best quotation with quality assured and timely delivery. JUPITER® is a large-scale semi trailer and special vehicles manufacturer and supplier in China. We have been specialized in semi trailer and special vehicles for more than 39 years. Our 40ft 3-axle Skeleton Semi Trailer with FUWA 13t Axles have a good price and quality advantage and had already exported to the Asia, Africa and South America countries. We look forward to becoming your long-term partner in China

Model:JPT9402TJZG

Send Inquiry

Product Description

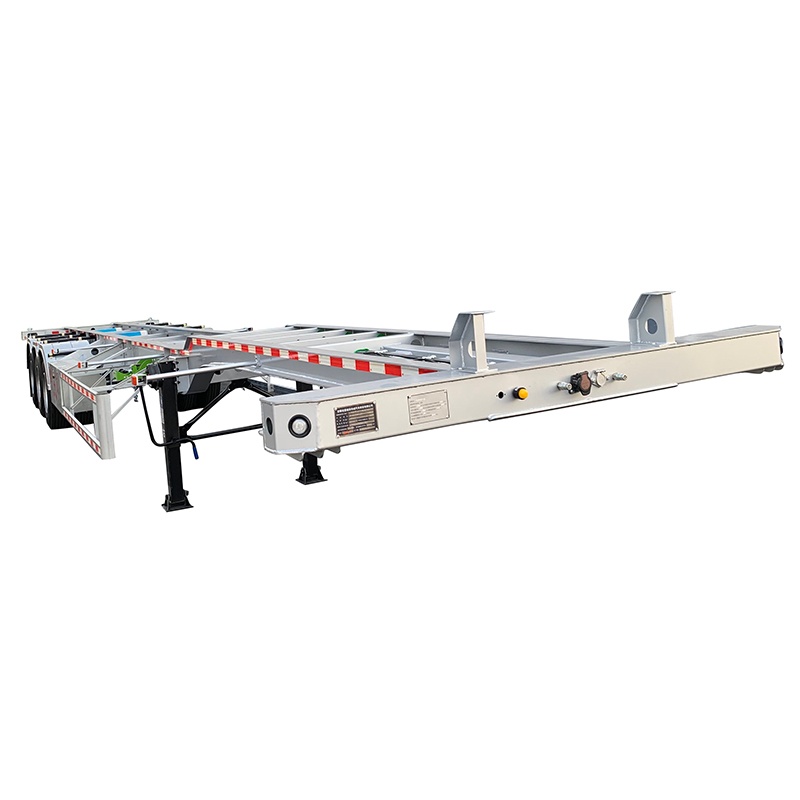

This JUPITER®  3 axles 40 feet Skeleton Semi Trailer with JOST 3.5 Inch King Pin is suitable for carrying ISO 20FT and 40FT containers, which are mostly used in the port, pier and container yards. 40ft 2-axle skeleton semi trailer is the best choice for the transportation and operation of 20ft and 40ft container van box with high efficiency and economic return, we use famous brand parts on 40ft 3 axles skeleton semitrailer, such as FUWA or BPW Brands Axle, JOST King Pin.so we recommend the end users or drivers to choose this 40ft 2-axle skeleton semi trailer with Fuwa 13T axle and welcome to inquiry about our 40ft 3-axle skeleton semi trailer. As the professional manufacture, we would like to provide you 3 axles 40 feet Skeleton Semi Trailers with JOST 3.5 inch king pin. And we will offer you the best after-sale service and timely delivery.

JUPITER® 3 AXLES 40 FEET SKELETON SEMI TRAILER Parameter (Specification)

Specification:

Type:

40FT 3 Axles Skeleton Trailer

Model:

JPT9402TJZG

Dimension:

Length:

12,420mm

Width:

2,480mm

Height:

1,540mm

Wheel Base:

7600+1310+1310mm

Frame & Structure:

Main beam:

Material Q345B. Fabricated “H” beam height 500mm, Top flange thickness 12mm, Middle web thickness6mm, Bottom flange thickness 14mm

Side beam:

14# channel steel

Platform:

2.5mm thick diamond plate with supporting channel, 4 lines 40*30 shaped steel

Kingpin:

2’(50#), bolted in type

Twist lock:

8sets twist locks

Welding standard:

All welding are to be done by qualified welder per applicable national standard

Painting:

Shot blast at Standard SA 2.5 prior to application of primer, polyurethane top coat. Total DFT not less than 100um

Running gear:

Suspension:

mechanicalsuspension,heavy duty leaf spring10x13mmx90mm, China

Axle:

Fuwa brand 2pcs*13 ton capacity, China

Brake system:

Dual line pneumatic brake, SAE hose and connector,without ABS

Brake chamber:

2 unitsT30/30 spring brakechambers, 2 units T30 brake chambers

Air tank:

40L,1pc, China

Tire:

11R22.5,8 +1 pcs. China

Rim:

8.25*22.5 steel disc wheel, 10 holes ISO,8+1 pcs. China

Landing gear:

Fuwa 28T two speed telescopic manual landing gear

Electrical System:

Voltage:

24 Volt

Receptacle:

7 way socket SAE standard, China

Front marker lamp:

White

Side marker lamp:

White & Red

Rear lamp:

Red

Turn signal lamp:

Amber

Reflector:

Per customer requirement

Wiring:

Electric cable protected by PVC conduit on main frame

Accessories:

Mud guard:

Steel mud guard

Spare wheel carriers:

1 pc

Tool box:

1 pc

Note: All the details not mentioned above should comply with Chinese regulations.If any component or structure changed, the price shall be modified accordingly.

As the professional manufacture, we would like to provide you 关键词. And we will offer you the best after-sale service and timely delivery.
