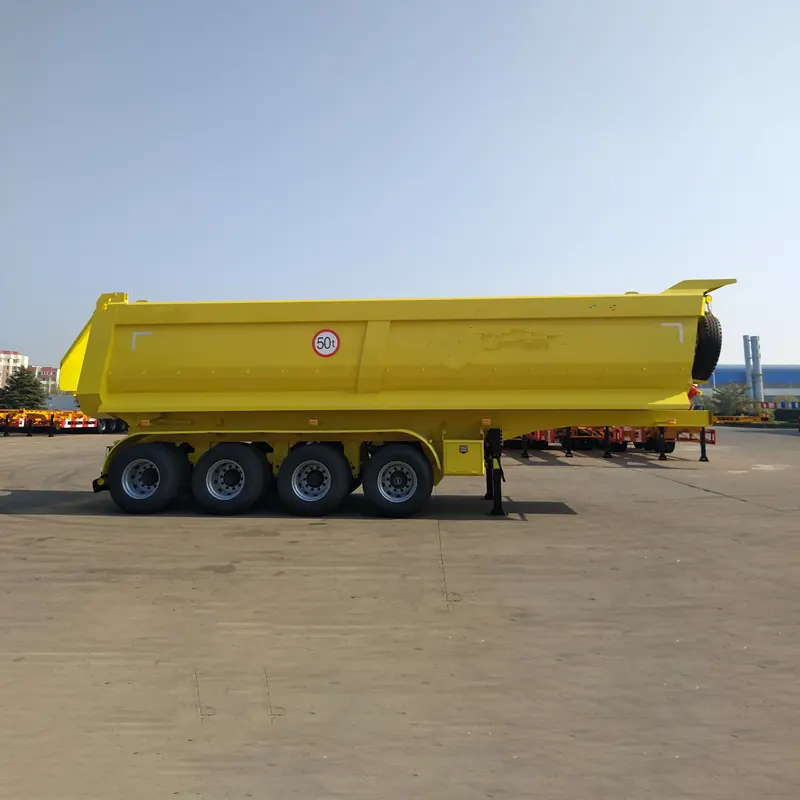

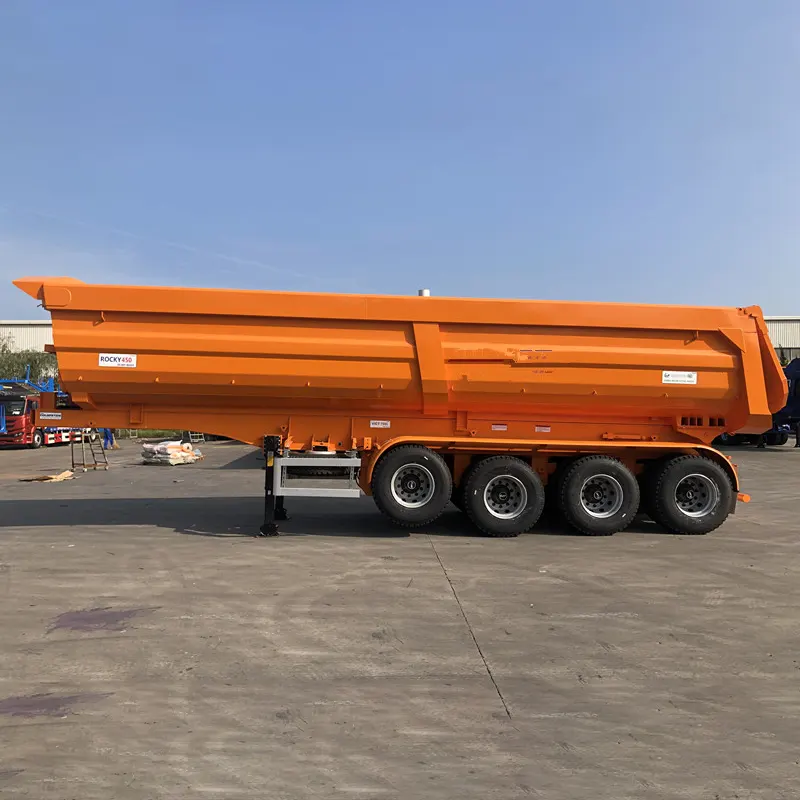

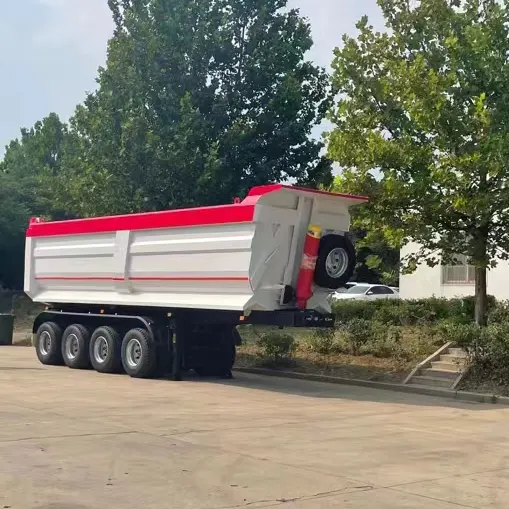

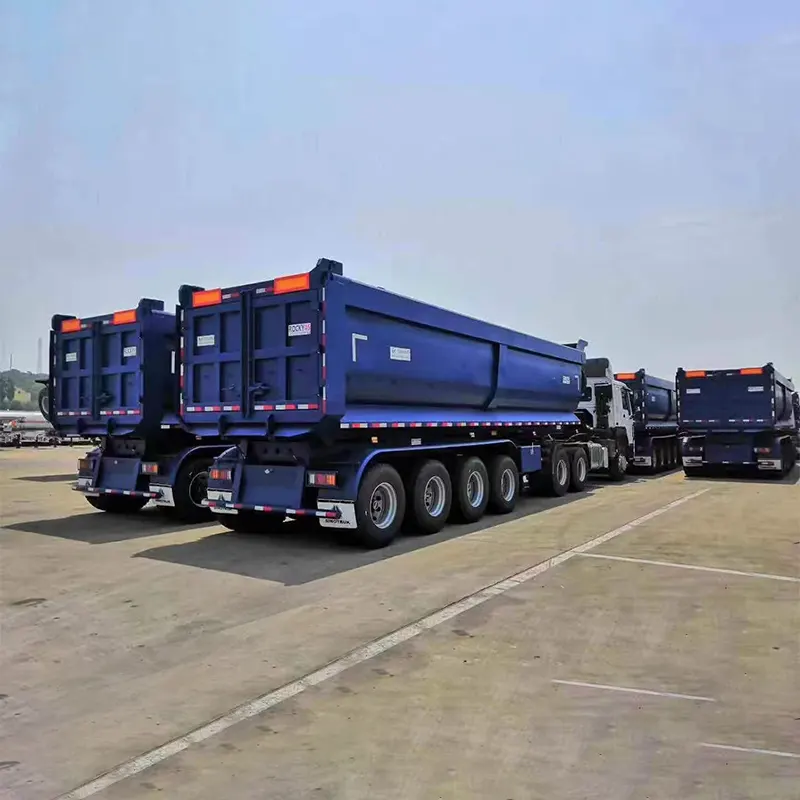

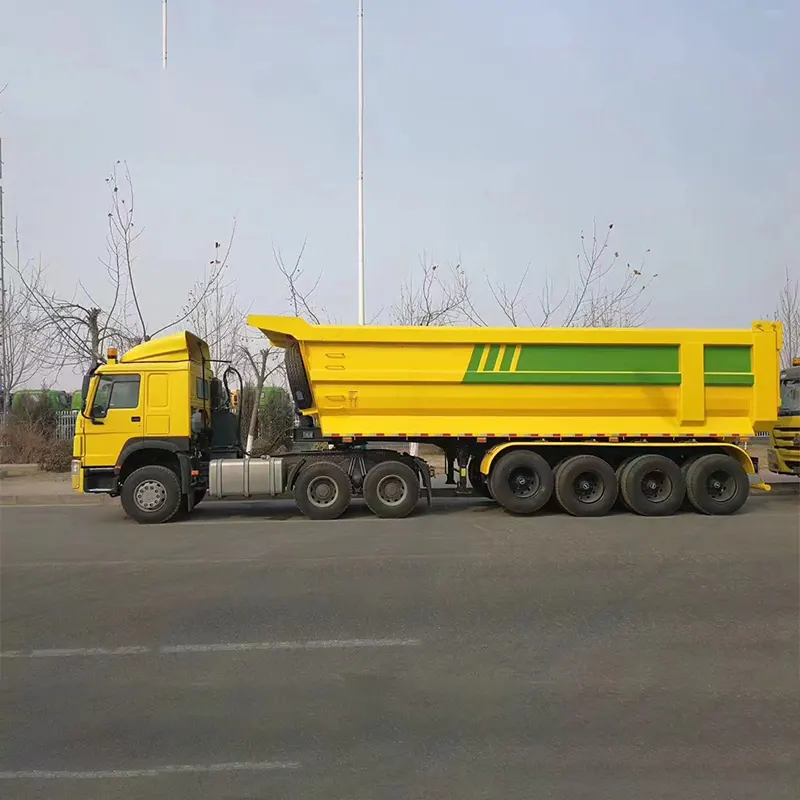

4 Axles Dump Semi Traielr With Fuwa 16t Axles

This JUPITER® 4 Axles Dump Semi Traielr With Fuwa 16t Axles are suitable for carrying Construction materials such as sands,stone which are mostly used in constructions industry and mining site. 60 TONS PAYLOAD TIPPER SEMI TRAIELR WITH 16MM FLOORING for mining use is the best choice for the transportation and operation of construction materials, bulk cargo with high efficiency and economic return, we use famous brand parts on HEAVY DUTY TIPPER TRAIELR, such as FUWA or BPW Brands Axle, JOST King Pin.so we recommend the end users or drivers to choose this 4 AXLES TIPPER SEMI TRAIELR WITH HYVA CYLINDER and welcome to inquiry about our 4 axles dump semi trailer.

TECHNICAL HIGHLIGHTS

• FUWA,BPW or Certificated China Axles
• Hyva Brand Hydraulic Cylinder
• Hydraulic or Pneumatic Roof
• High Quality Steel usage
• Air or Mechanical or Hydraulic Suspension
• Dimensions As Per The Buyer Request

Type		4 Axles Dump Semi-Trailer
Model		FTW9602ZZX
Parameter	Dimension(mm)	length×width×height:11500×2500×3380mm
	King Pin Setting(mm)	955
	Fifth Wheel	The height will be adjusted according to the tractor specification
	Height(mm)
	Axle Space(mm)	5350+1310+1310+1310
	Tare Weight（kg）	Approx. 9800
	Payload （kg）	60000
Fabric	Main Beam(mm)	500, submerged arc welding Q345B
	Flange and Web(mm)	14/16/8mm
	Paint	primer + top coat
OEM	Landing Gear	FUWA 19”
	Kingpin	50＃，FUWA
	Brake System	30/30 type on rear two axles, SEALCO brake valve
	Hydraulic System	CHengyitong Brand 214×5×6800×65
	Suspension	Mechanical suspension with 8 leaf spring
	Axle	Factory Standard 13T. Number: 4
	Tire	Roadstar 12R22.5-18PR, Number:16
	Rim	9.0*22.5 Number:16
	Tool box	1 set on right side, 1m, steel
	Spare Tire Carrier	equipped 01 set per chassis
Color	/	According to customer’s requirements
Others		● “LONG VEHICLE” sign on the rear end.
		● LED lights，equip side turn light.
		● Main beam: stick “JUPITER” logo
		● Mud flap: stick “JUPITER ”
		● Nameplate: English model

Note:
All the details not mentioned above should comply with Chinese regulations.
JUPITER does NOT take any responsibility on the trailer’s registration in the terminal country.
