45ft 3-axle skeleton semi trailer with JOST 2 inch King Pin
Products
New Products
Heavy Duty U Shape Body Dump Semi Trailers with 60-80 tonners capacity
3 Axles Dump Semi Trailers with 35cbm capacity
Tanzania type 40ft 3 axles flatbed semi trailers manufacturer supplier exporter
China 40ft 3 axles flatbed semi trailers manufacturer supplier exporter
3 axles 40 feet Skeleton Semi Trailers with JOST 3.5 inch king pin- All new products
45ft 3-axle skeleton semi trailer with JOST 2 inch King Pin
JUPITER® is a professional leader China 20FT,40FT and 45FT 3-Axle Skeleton Semi Trailer manufacturer with high quality and reasonable price. Welcome to contact us. JUPITER is a large-scale semi trailer and special vehicles manufacturer and supplier in China. We have been specialized in semi trailer and special vehicles for more than 38 years. Our 45ft 3-axle skeleton semi trailer with JOST 2 inch King Pin have a good price and quality advantage and had already exported to the Asia, Africa and South America countries. We look forward to becoming your long-term partner in China
Send Inquiry
PDF DownLoad
Product Description

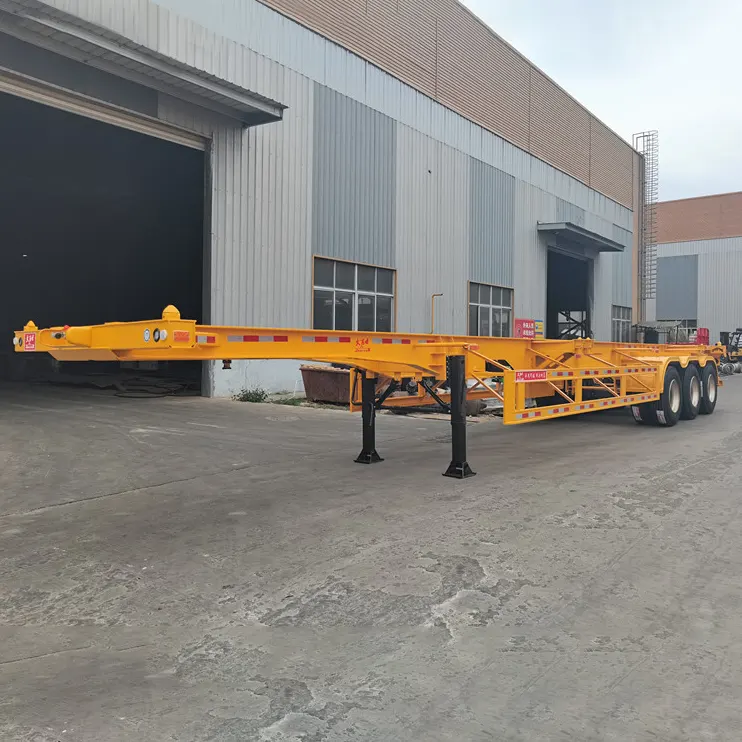

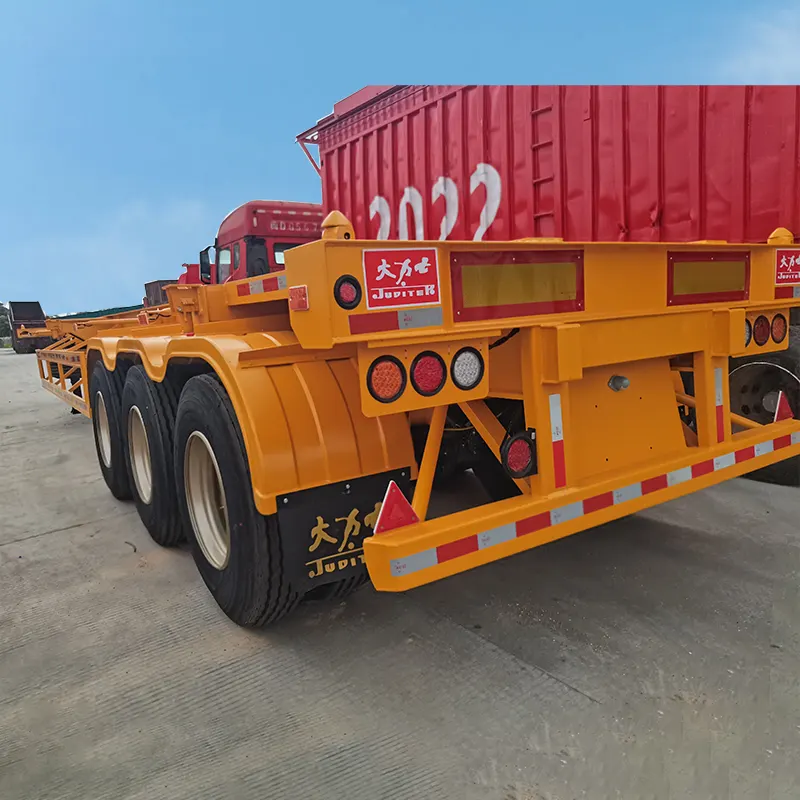

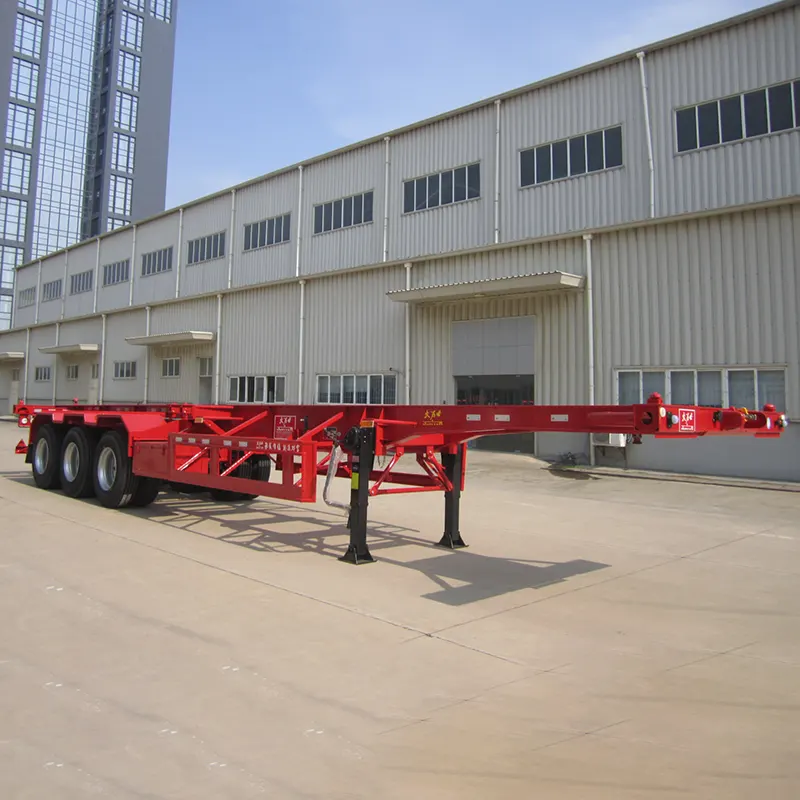

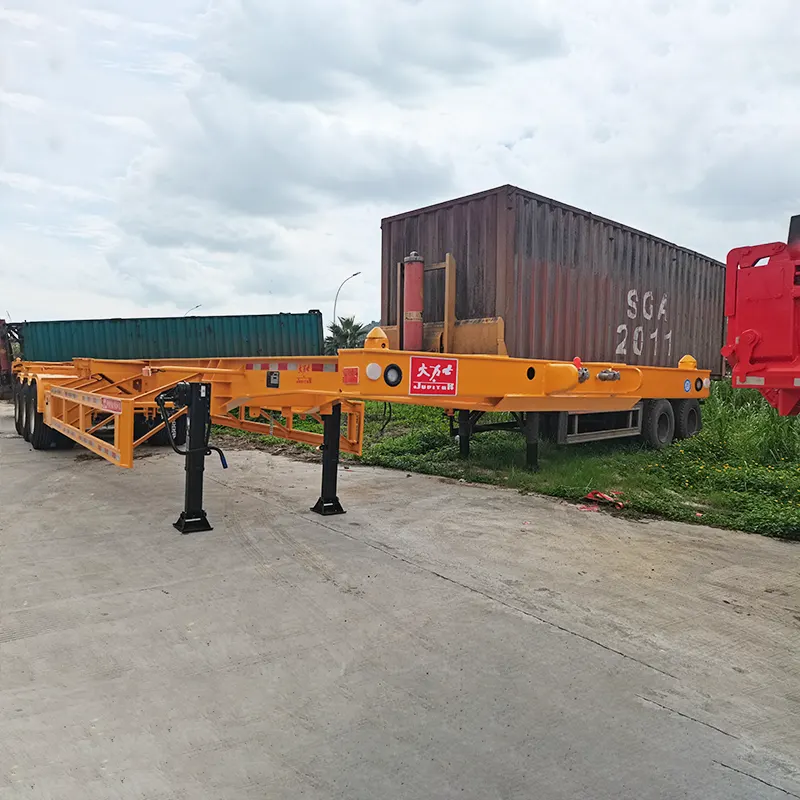

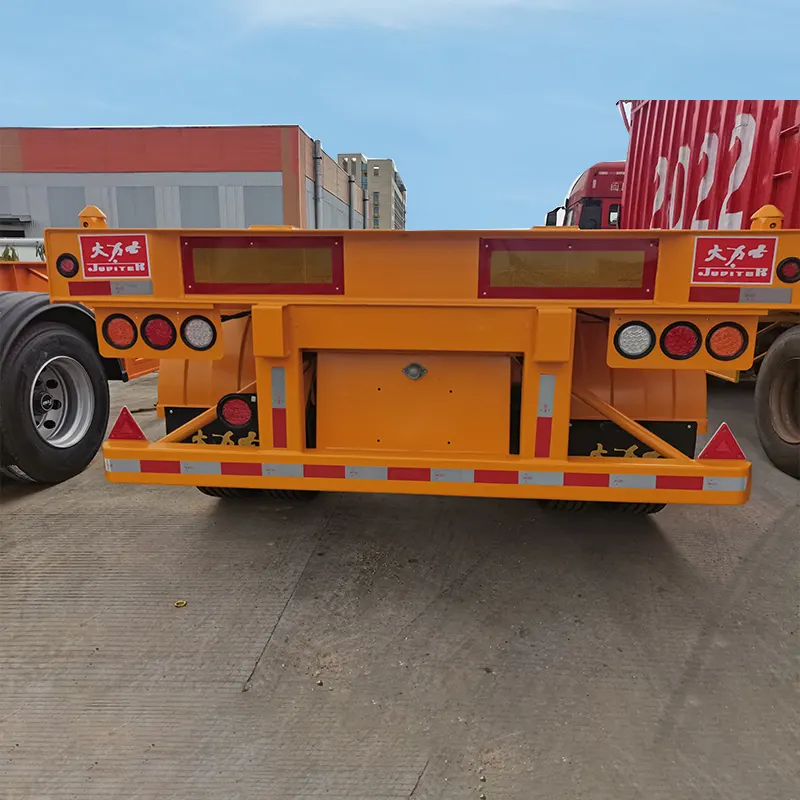

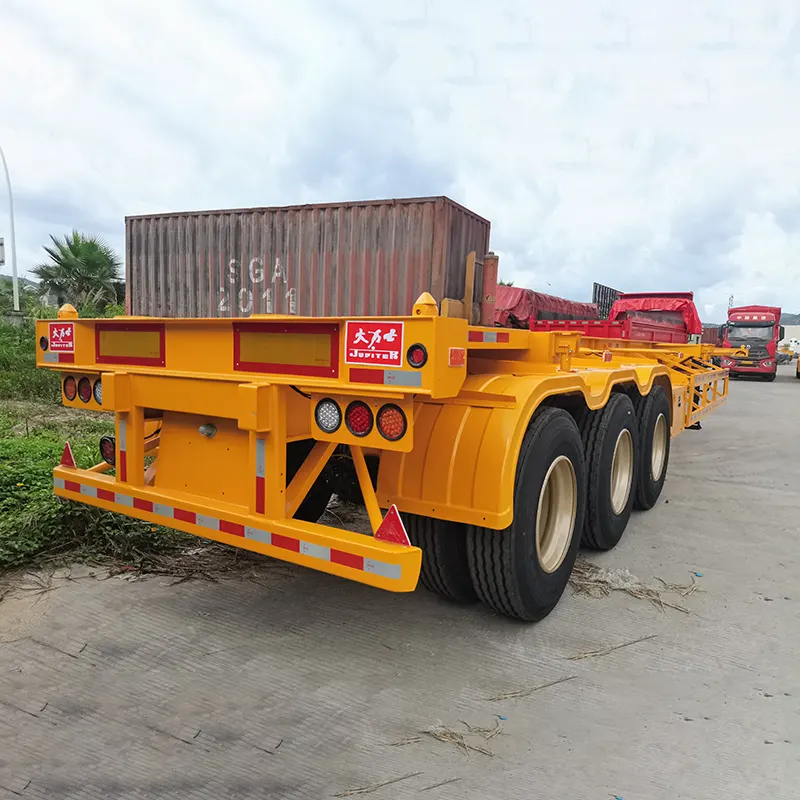

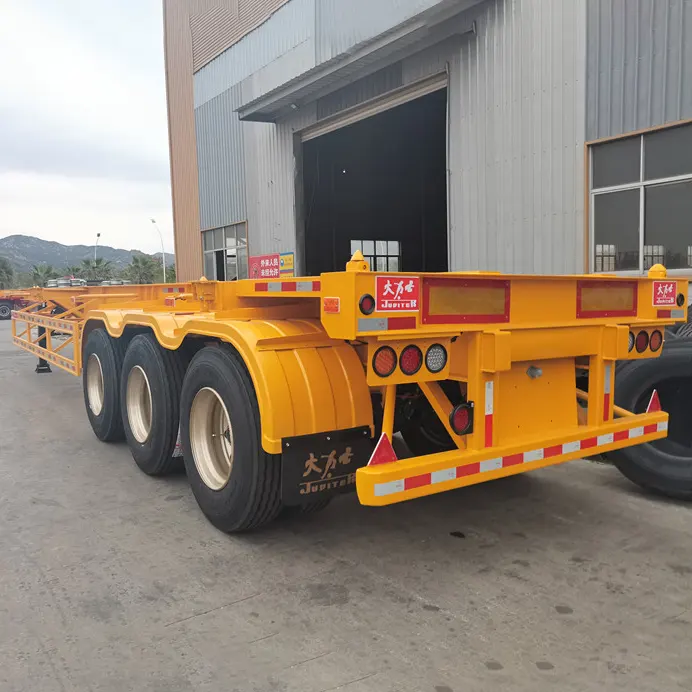

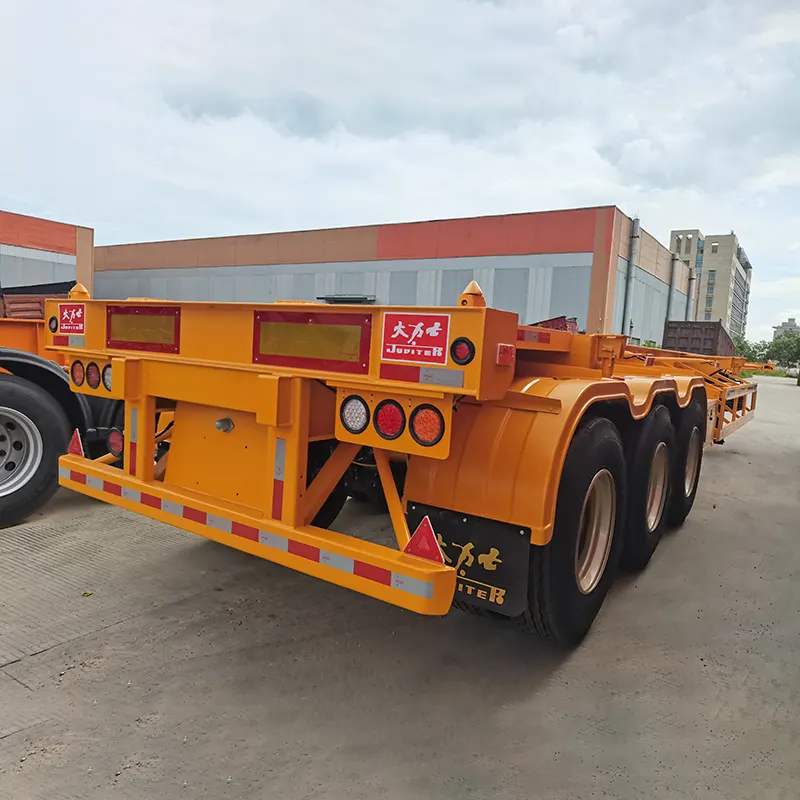

This JUPITER® 45ft 3-axle skeleton semi trailer is suitable for carrying ISO 20FT,40FT and 45FT containers, which are mostly used in the port, pier and container yards. 45ft 3-axle skeleton semi trailer with JOST 2 inch King Pin is the best choice for the transportation and operation of 20ft and 40ft container van box with high efficiency and economic return, we use famous brand parts on 45ft 3-axle skeleton semitrailer with 10 locks, such as FUWA or BPW Brands Axle, JOST King Pin.so we recommend the end users or drivers to choose this 45ft 3-axle skeleton semi trailer with Fuwa 13T axle and welcome to inquiry about our 45ft 3-axle skeleton semi trailer.
JUPITER 45FT 3-AXLE SKELETON SEMI TRAILER Parameter (Specification)
|
Type |
45FT 3 Axles Skeleton Semi-Trailer |
|
|
Model |
JPT9406TJZG |
|
|
Parameter |
Dimension(mm) |
length×width×height:13950×2480×1540mm |
|
King Pin Setting(mm) |
930 |
|
|
Fifth Wheel Height(mm) |
The height will be adjusted according to the tractor specification |
|
|
Axle Space(mm) |
8500+1310+1310 |
|
|
Tare Weight（kg） |
6200 |
|
|
Payload（kg） |
33800 |
|
|
Fabric |
Main Beam(mm) |
500, submerged arc welding Q345B |
|
Flange and Web(mm) |
14/8/16 |
|
|
Lock |
10 retractable locks |
|
|
Paint |
primer + top coat |
|
|
OEM |
Landing Gear |
FUWA 19” |
|
Kingpin |
50＃，FUWA |
|
|
Brake System |
30/30 type onrear two axles,WABCO brake valve |
|
|
ABS |
No |
|
|
Suspension |
Mechanical suspension with 8 leaf spring（Jiangling Brand） |
|
|
Axle |
||
|
Tire |
12R22.5-18PR, 12 pcs |
|
|
Rim |
9.0*22.512pcs |
|
|
Tool box |
1 set on right side, 1m, steel |
|
|
Spare Tire Carrier |
equipped2 sets per chassis |
|
|
Color |
/ |
According to customer’s requirements |
|
Others |
|
● “LONG VEHICLE” sign on the rear end. ● LED lights，equip side turn light. ● Main beam: stick “JUPITER” logo ● Mud flap: stick “JUPITER ” ● Nameplate: English model |
