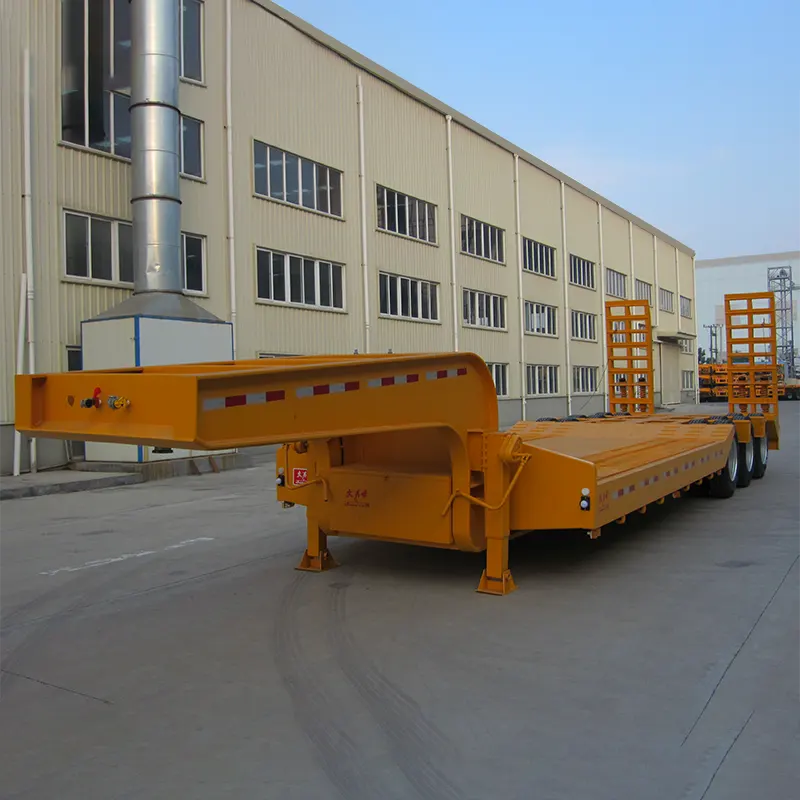

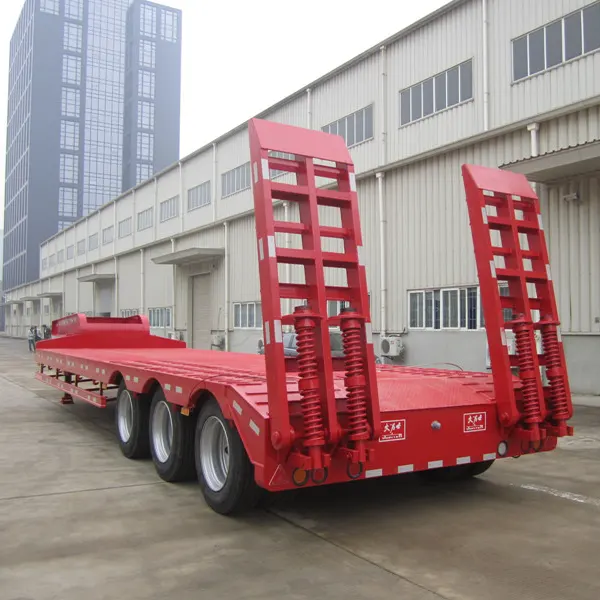

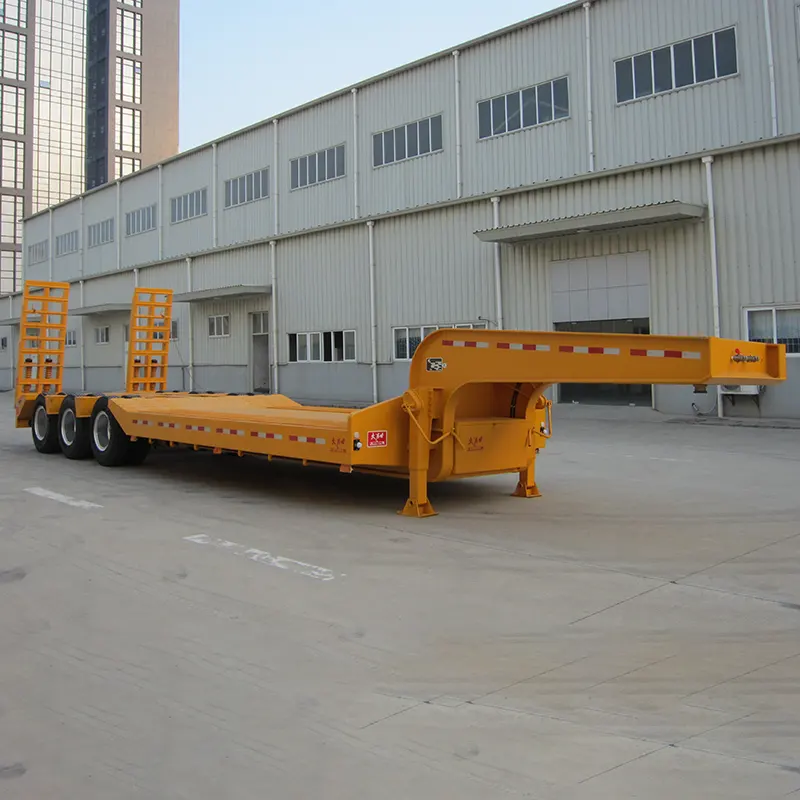

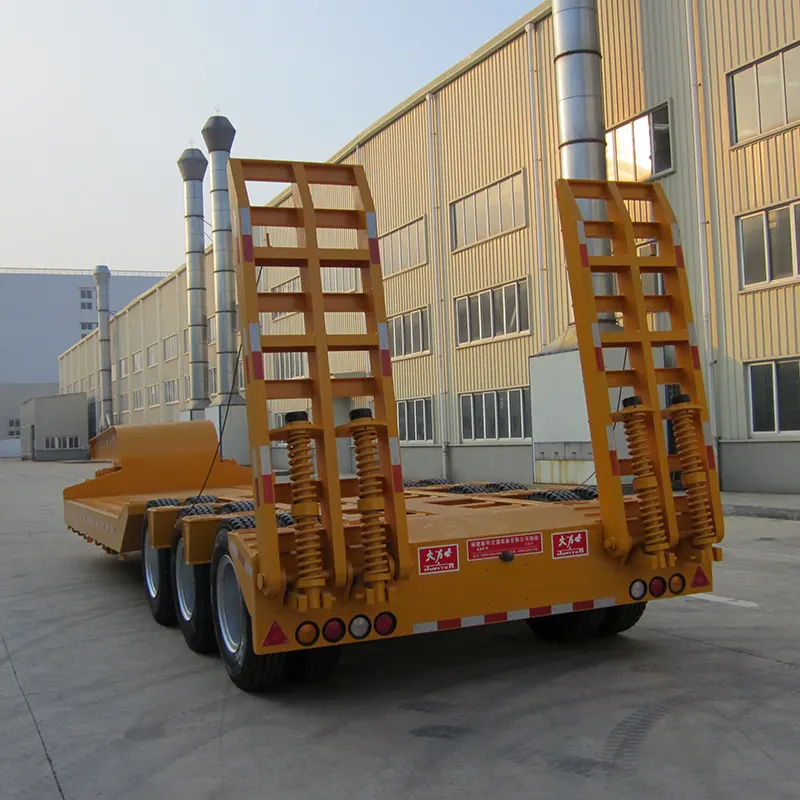

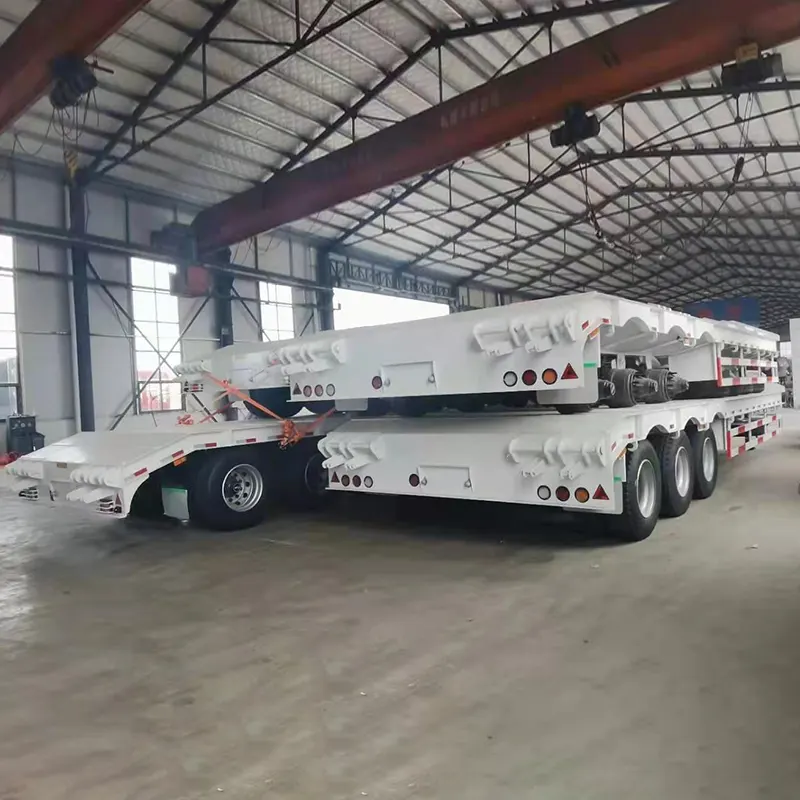

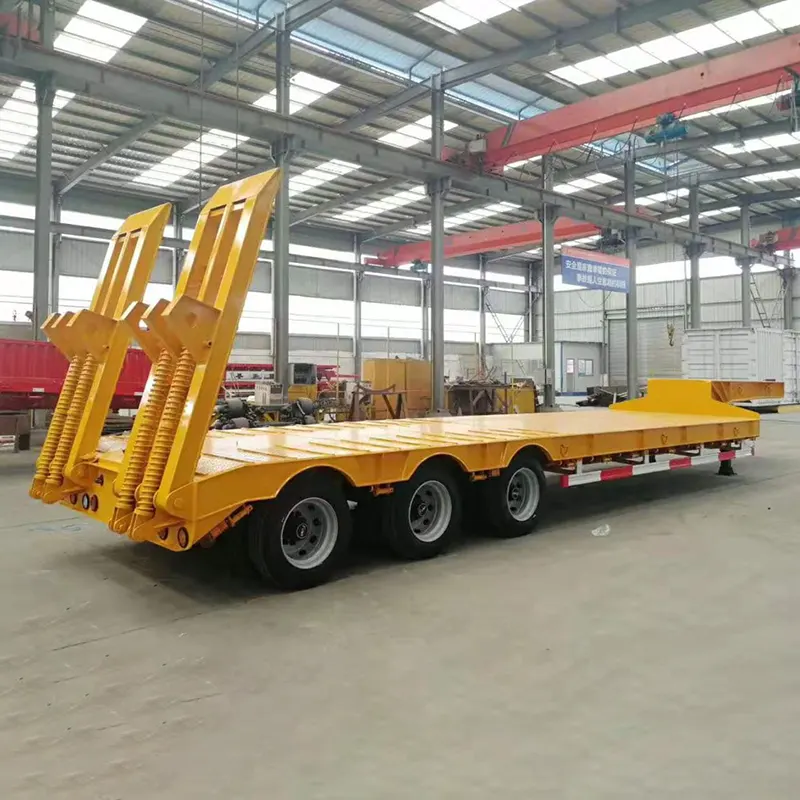

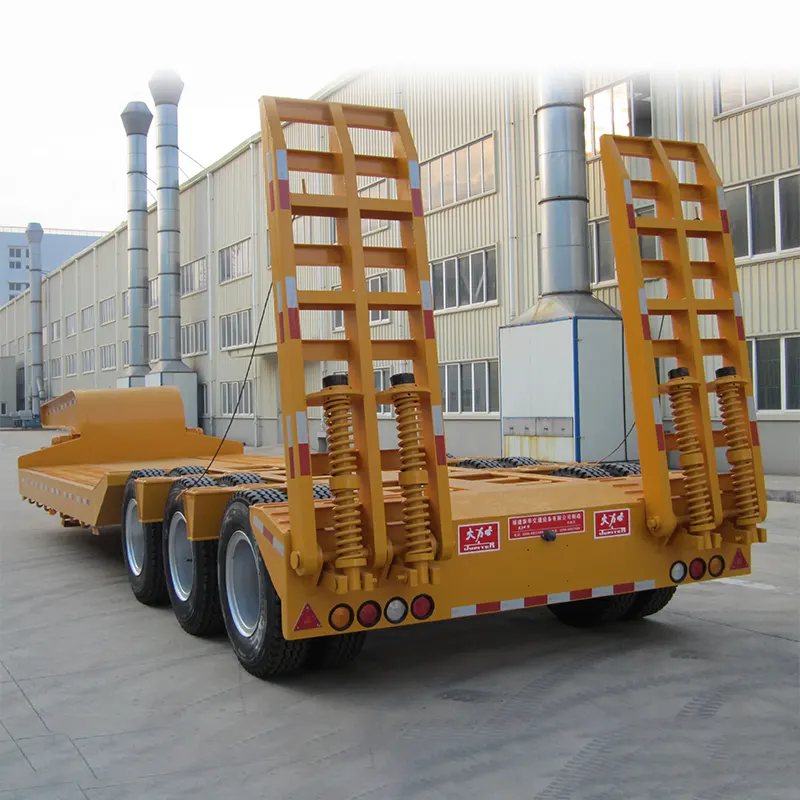

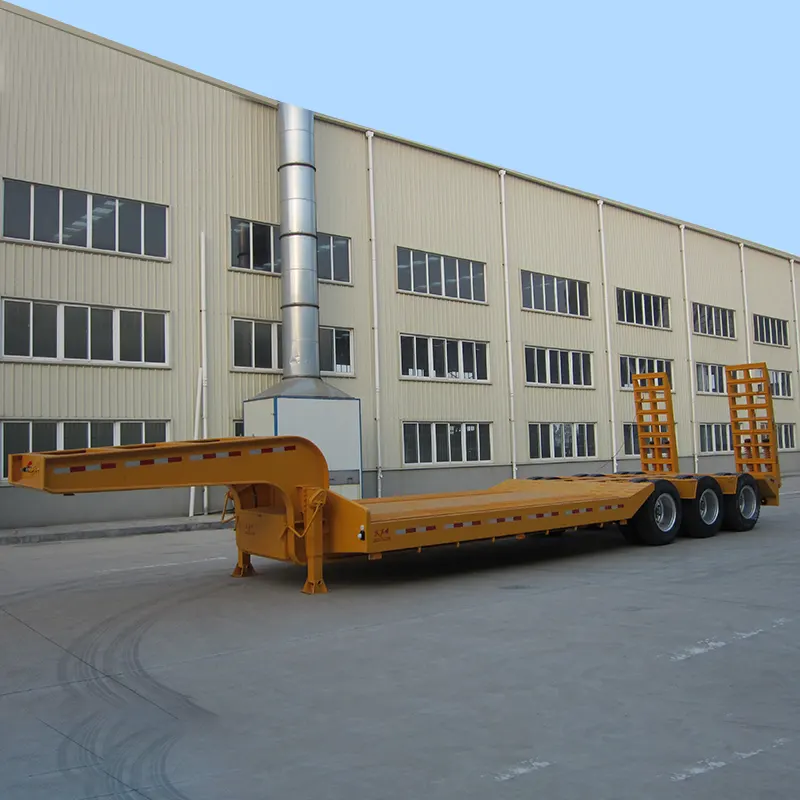

50-60 Tons 3 Axles Lowbed Semi Trailer with Rear Ramp

This JUPITER® 50-60 Tons 3 Axles Lowbed Semi Trailer with Rear Ramp is suitable for carrying Construction Equipments bulk cargo such as backhoe, wheel loader which are mostly used in short and long distance transportation. HIGH PAYLOAD LOWBOY SEMI TRAIELR WITH 3 AXLES, FUWA 13T is the best choice for the transportation and operation of machines,equipments, bulk cargos,with high efficiency and economic return, we use famous brand parts on  50-60 Tons 3 Axles Lowbed Semi Trailer with Rear Ramp, such as FUWA or BPW Brands Axle, JOST King Pin.so we recommend the end users or drivers to choose this 3-AXLE LOW BOY SEMI TRAIELR WITH BPW 16T AXLE and welcome to inquiry about our 3 axles lowbed semi trailer.

TECHNICAL HIGHLIGHTS

• FUWA,BPW or Certificated China Axles
• Self Steering or hydraulic steering axles
• Hydraulic or Pneumatic Ramp
• 3 Axles Lowbed Self Widening, 3 Axles Lowbed Step Deck, 3 Axle Lowboy, 3 Axle Low Loaders, 3 Axle Front Loading Lowbed
• High Quality Steel usage
• Air or Mechanical or Hydraulic Suspension
• Dimensions As Per The Buyer Request

Type		3 Axles Lowbed Semi-Trailer
Model		FTW9502TTD
Parameter	Dimension(mm)	length×width×height:13000×2800×3150mm
	King Pin Setting(mm)	850
	Fifth Wheel Height(mm)	The height will be adjusted according to the tractor specification
	Axle Space(mm)	6150+1310+1310
	Tare Weight（kg）	8,500
	Payload （kg）	60,000
Fabric	Main Beam(mm)	300, submerged arc welding Q345B
	Flange and Web(mm)	2020/8/20
	Flooring	3mm Checkered Plate
	Lock	/
	Paint	primer + top coat
OEM	Landing Gear	FUWA 19”
	Kingpin	50＃，FUWA or JOST
	Brake System	30/30 type on rear two axles with brake valve
	ABS	No
	Suspension	Mechanical suspension with 08 or 10 leaf spring
	Axle	13T. Number: 3
	Tire	11R22.5, Number:12
	Rim	8.0*22.5 Number:12
	Tool box	1 set on right side, 1m, steel
	Spare Tire Carrier	equipped 1 set per chassis
Color	/	According to customer’s requirements
Others		● “LONG VEHICLE” sign on the rear end.
		● LED lights，equip side turn light.
		● Main beam: stick “JUPITER” logo
		● Mud flap: stick “JUPITER ”
		● Nameplate: English model
