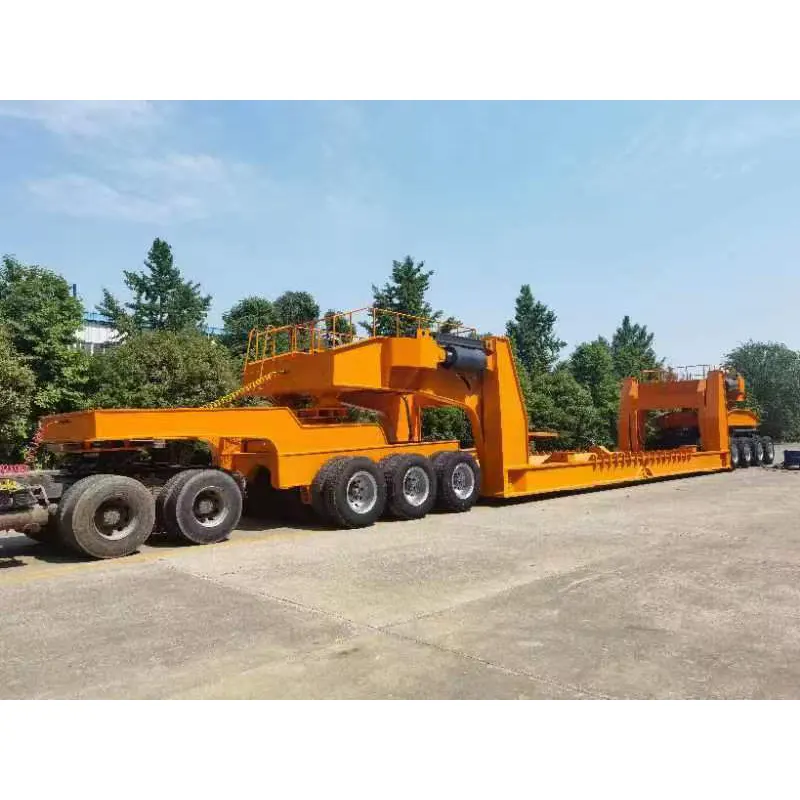

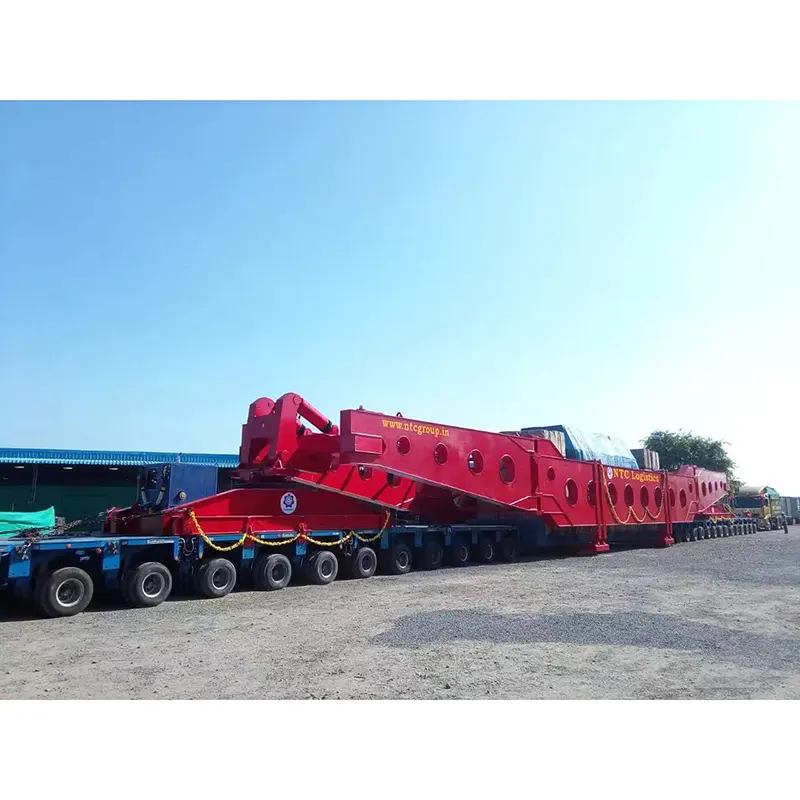

Multi-axle Modular Semi Trailer with Hydraulic Steering System

For 8 axles Modular Semi Trailers, everyone has different special concerns about it, and what we do is to maximize the product requirements of each customer, so the quality of our 8 axles modular semi trailer has been well received by many customers and enjoyed a good reputation in many countries JUPITER MODULAR SEMI TRAILERS have characteristic design & practical performance & competitive price, for more information on the MODULAR SEMI TRAILERS, please feel free to contact us. JUPITER Semi Trailer produce different types of 8 Axles modular Trailer with different specifications. can carry different loads different weight and with different lengths and widths. Different type of for Lowbed 5 Axle models and has a wide range of modular semi-trailer with many different options.

Send Inquiry

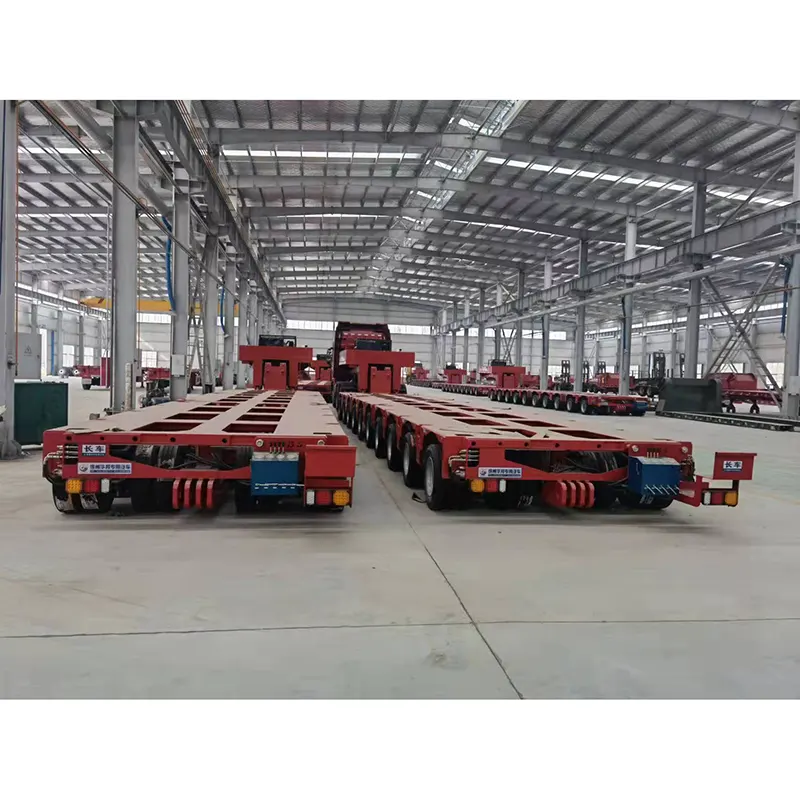

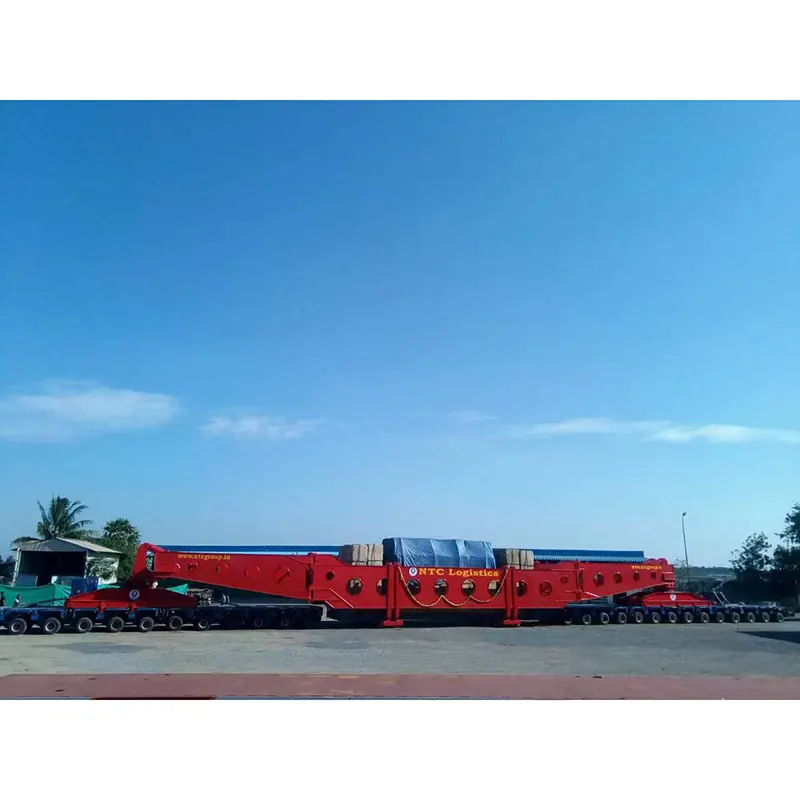

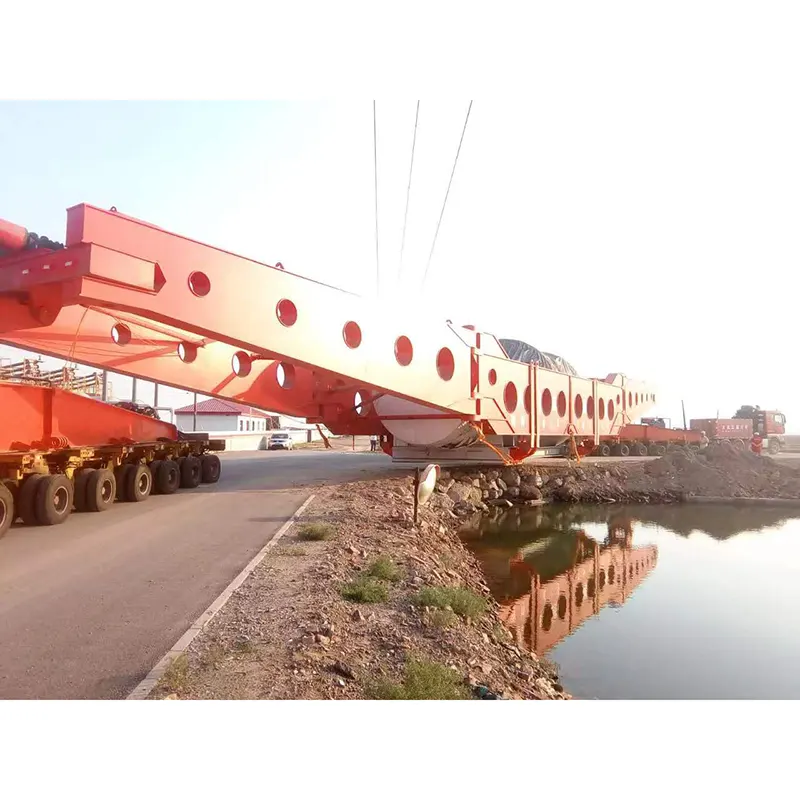

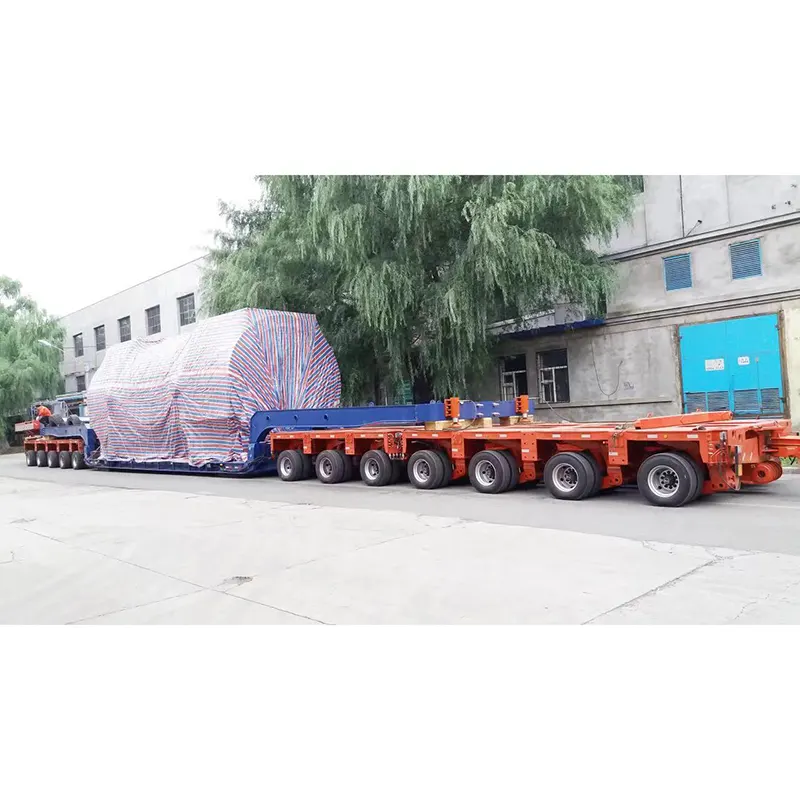

Product Description

This JUPITER 8 axles Modular Semi Trailer is suitable for carrying Construction Equipments bulk cargo such as backhoe, wheel loader which are mostly used in short and long distance transportation. 8 axles modular semi trailer is the best choice for the transportation and operation of machines,equipments, bulk cargos,with high efficiency and economic return, we use famous brand parts on  8 Axles modular semi trailer, such as FUWA or BPW Brands Axle, JOST King Pin.so we recommend the end users or drivers to choose this 8 axles modular and welcome to inquiry about our 8 axles modular semi trailer.

Main technical parameters

Rated Axle Load

45,000 kg

Platform Width

2,990 mm

Platform Height

1,175 mm (± 300 mm)

Wheelbase

1,500 mm

Tread

1,800 mm

Steering Angle (first axle)

55°

Tire

215/75 R17.5

Tire Pressure

11 bar

Main Accessories


Accessories

Model

Brand

1

Quick Connector

RK12-1624

Voswinkel

2

Hydraulic Hose



Aeroquip

3

Accumulator



Fenghua

4

Multiway Directional Valve

Q45/5

Bondioli-pavesi

5

Engine

KD625

Kohler

6

Electrical connector



Wain

7

Slewing Bearing

010.20.641

Fenghe

8

Hydraulic Joint



ETON Standard

9

Hydraulic Pump

A2F12

Shanghai Electric

10

Cylinder



Haite

11

Explosion Proof Valve

SDCG300A

Weili

12

Axle

BPW standard

Yuek

13

Tire

--215/75R17.5

Double coins

14

Rim

--6.00-17.5

Zhengxing

15

Air Circuit



Sorl

3 Axles Modular


Axle qty.

3

Speed(km/h)

0.5

5

40

80

Max. Total Weight(t)

135.0

109.8

60

49.2

Curb Weight(t)

10.41



Rated load(t)

124.59

99.39

49.59

38.79

Axle load(t)

45.0

36.6

20.0

16.4

Overall length(mm)

4500

Overall width(mm)

2990

Overall height(mm)

1175±300

Wheelbase(mm)

1500

Tread(mm)

1800/735

Tire

215/75R17.5  135/133J 16PR

Rim

6.00-17.5

Tire qty.

24

Wheel Steering Angle

55°

Turning Radius(mm)

≤1500(inner)、≤5740(outer)

Operating Temperature

-40℃~+55℃

4 Axles Modular


Axle qty.

4

Speed(km/h)

0.5

5

40

80

Max. Total Weight(t)

180.0

146.4

80

65.6

Curb Weight(t)

13.86



Rated load(t)

166.14

132.54

66.14

51.74

Axle load(t)

45.0

36.6

20.0

16.4

Overall length(mm)

6000

Overall width(mm)

2990

Overall height(mm)

1175±300

Wheelbase(mm)

1500

Tread(mm)

1800/735

Tire

215/75R17.5  135/133J 16PR

Rim

6.00-17.5

Tire qty.

32

Wheel Steering Angle

55°

Turning Radius(mm)

≤2550(inner)、≤7500(outer)

Operating Temperature

-40℃~+55℃

5 Axles Modular


Axle qty.

5

Speed(km/h)

0.5

5

40

80

Max. Total Weight(t)

225.0

183.0

100.0

82

Curb Weight(t)

17.31

Rated load(t)

207.69

165.69

82.69

64.69

Axle load(t)

45.0

36.6

20.0

16.4

Overall length(mm)

7500

Overall width(mm)

2990

Overall height(mm)

1175±300

Wheelbase(mm)

1500

Tread(mm)

1800/735

Tire

215/75R17.5  135/133J 16PR

Rim

6.00-17.5

Tire qty.

40

Wheel Steering Angle

55°

Turning Radius(mm)

≤1500(inner)、≤5740(outer)

Operating Temperature

-40℃~+55℃

6 Axles Modular


Axle qty.

6

Speed(km/h)

0.5

5

40

80

Max. Total Weight(t)

270

219.6

120

98.4

Curb Weight(t)

20.76

Rated load(t)

249.24

198.84

99.24

77.64

Axle load(t)

45

36.6

20

16.4

Overall length(mm)

9000

Overall width(mm)

2990

Overall height(mm)

1175±300

Wheelbase(mm)

1500

Tread(mm)

1800/735

Tire

215/75R17.5 16PR

Rim

6.00-17.5

Tire qty.

48

Wheel Steering Angle

55°

Turning Radius(mm)

2030(inner)、6650(outer)

Operating Temperature

-40℃~+55℃

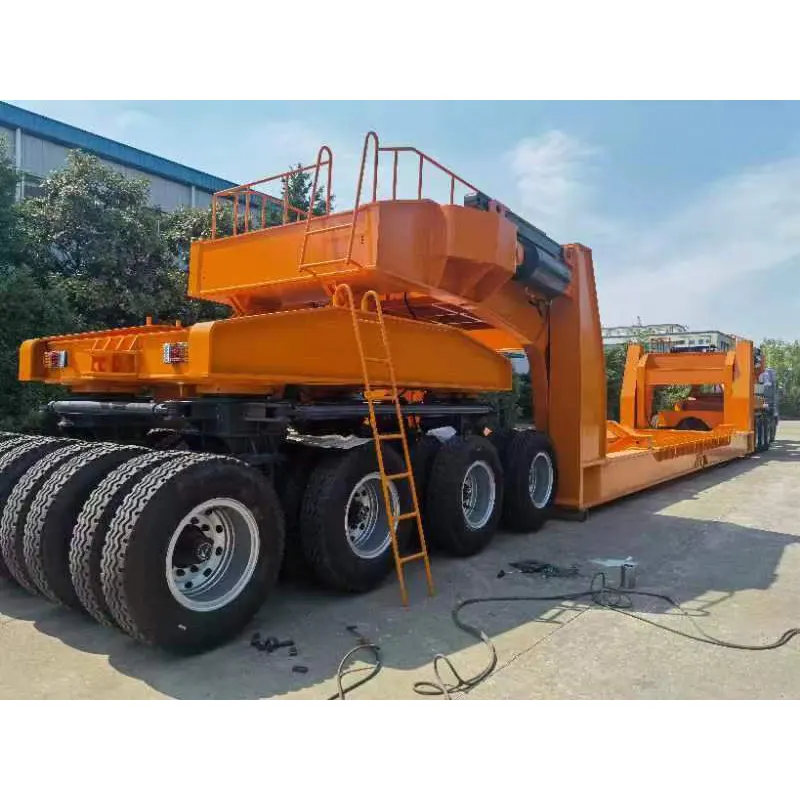

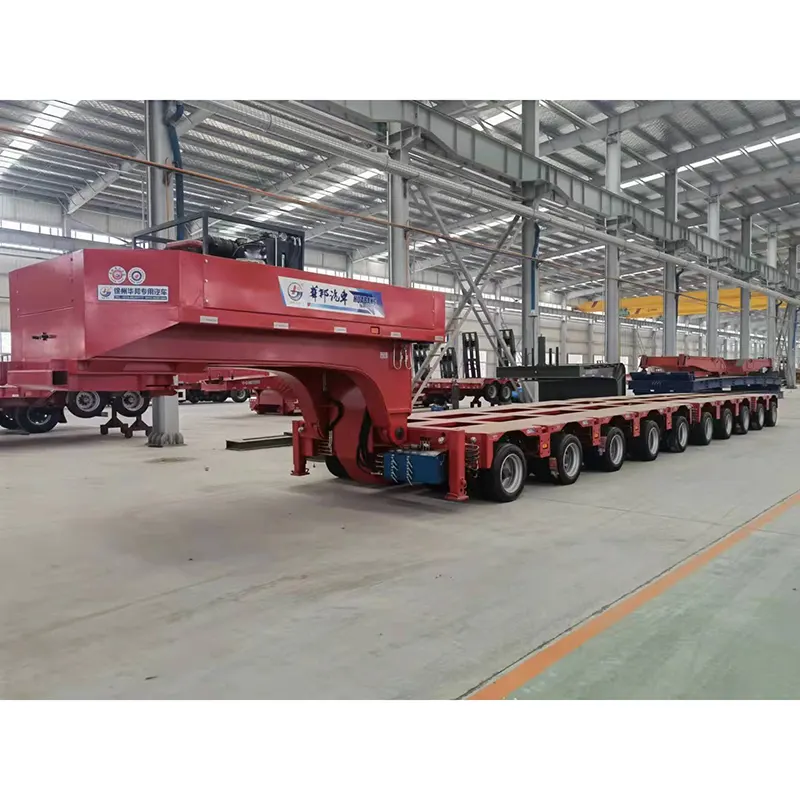

Hydraulic Goose-neck

Five wheel load(t)

Rated 35,  Max. 50

Five wheel height(flatform1175)(mm)

1370/1520

Rear turning radius(mm)

2800

Maximum angle of tractor relative to goose-neck

105°

King pin

90#(3.5inch)

Curb Weight(t)

appr. 6.5

Dimensions(mm)

3962×2500×1841+400

Note: Gooseneck is equipped with removable guardrail (400mm) and ladder for easy operation.

Power Unit


Engine

Kohler KD625

Power

21Kw/28.5Hp

Max. Rotor Speed

3000r

Maximum Torque Speed

2200r

Hydraulic Pump

SHANGHAI ELECTRIC A2F12

Pump Flow Rate

12ml/r

Max. Pump Output Pressure

35Mpa

Coupling

KTR BOWEX FLE-PA

Rated Output Pressure

31.5Mpa

Curb Weight

300Kg

Draw Bar

3m Draw bar
The diameter of the drag ring hole is 70mm, and the drag ring is removable.

Steering Bracket

Steering System

A.2-4 axles modular uses one group of steering cylinders to realize the steering function;
B.5-6 axles modular uses two groups of steering cylinders to realize the steering function;
C.The tie rod of this vehicle has the same specification as Goldhofer THP / SL model and can be interchanged:L=680/L=762/L=1500

4 Axles Modular Steering Diagram

5 Axles Modular Steering Diagram

6 Axles Modular Steering Diagram
